Summary
American cable branch box is a kind of transmission and distribution engineering equipment widely used in North American power distribution system. It is characterized by one-way door opening and transverse multi-way bus, and has the advantages of small width, flexible combination, full insulation and full sealing. According to the rated current, it can be generally divided into 630A main circuit and There are two types of 200A branch circuit. 630A main circuit is fixed with screw in bolts; 200A branch circuit is connected with plug-in type and can be pulled with load Insert. The cable joint used in American cable branch box shall conform to ifff386 standard. Widely applicable to: urban power grid transformation, residential areas, commercial centers and other cities A densely populated area of the city.

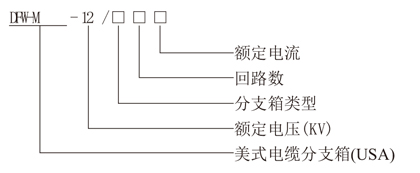

Model and its meaning


Structural features
3.1 full insulation, full sealing, maintenance free, reliable personal safety guarantee;
3.2 corrosion resistance, flood resistance, above ground and underground installation, suitable for all kinds of harsh environment;
3.3 simplify the urban cable network system and save investment;
3.4 it occupies less land, has low height and beautiful appearance, and can coordinate with the surrounding environment;
3.5 the wiring scheme is flexible and various, and the installation and operation are very convenient;
3.6 200A cable head can be plugged and unplugged with load, and it has the function of isolating switch in the same process;
3.7 short circuit fault indicator can be installed to quickly determine the fault location.

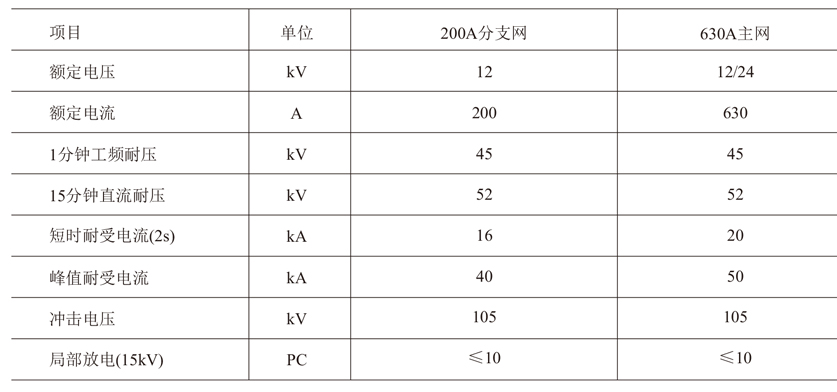

Main technical parameters

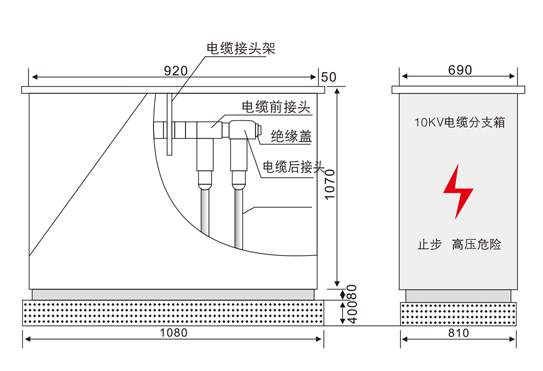

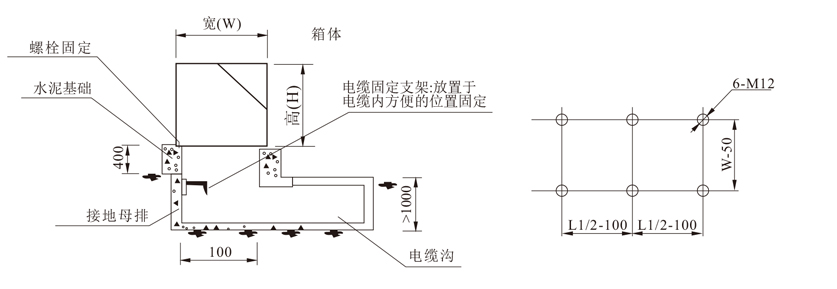

Installation drawing of American cable distribution box

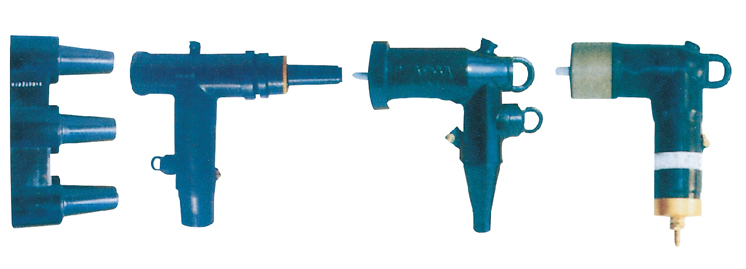

American cable junction box accessories

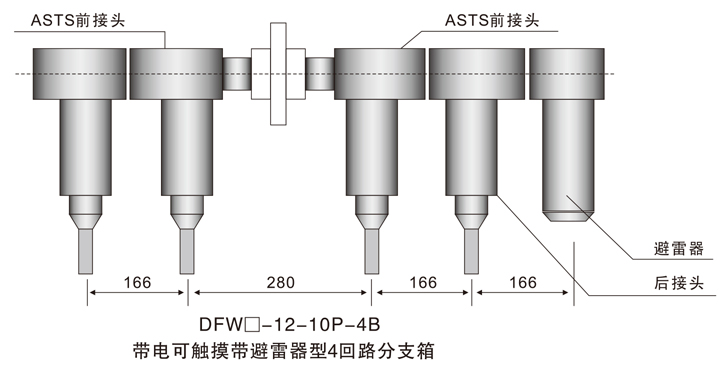

Description of arrangement diagram
