FZW32-12 series outdoor high voltage isolation vacuum load switch
Type:Outdoor high voltage vacuum circuit breaker
Summary FZW32-12 / T630-20 outdoor high-voltage isolation vacuum load switch (hereinafter referred to as load switch) is an outdoor high-voltage switchgear with three-phase AC 50Hz and rated voltage of 12kV, which is suitable for opening and closi
Summary
FZW32-12 / T630-20 outdoor high-voltage isolation vacuum load switch (hereinafter referred to as load switch) is an outdoor high-voltage switchgear with three-phase AC 50Hz and rated voltage of 12kV, which is suitable for opening and closing load current of urban or rural distribution system and breaking transfer current of fuse. Equipped with motor mechanism and controller, it can be used as line breaking switch or automatic breaking device. Due to the adoption of new insulation structure design and vacuum arc extinguishing chamber, the load switch has obvious fracture after switching off, and has the function of isolating switch. In addition, it has large switching capacity and no oil, so it has no pollution to the environment, no explosion risk and electrical life
Long and maintenance free.

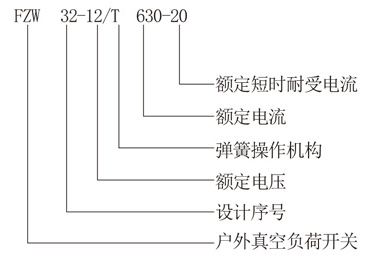

Model and its meaning

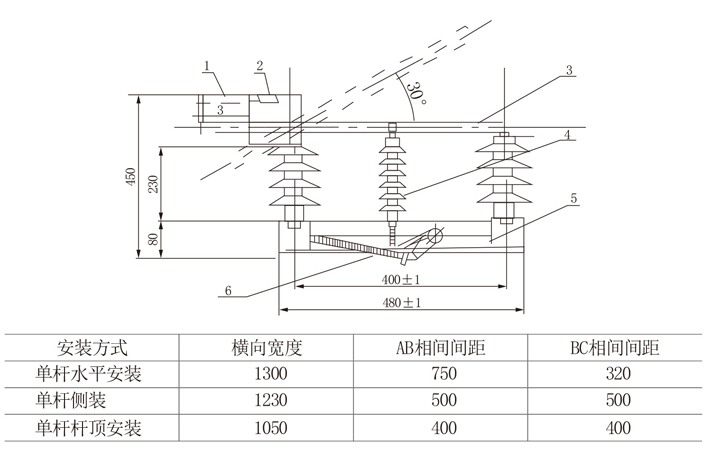

Outline and installation dimension

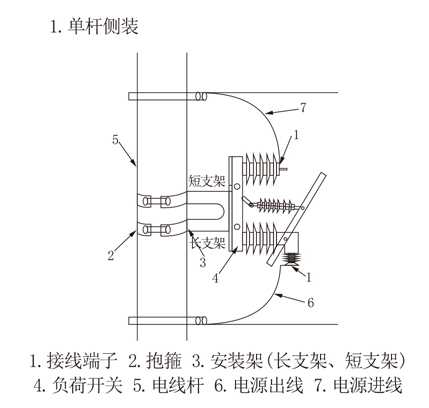

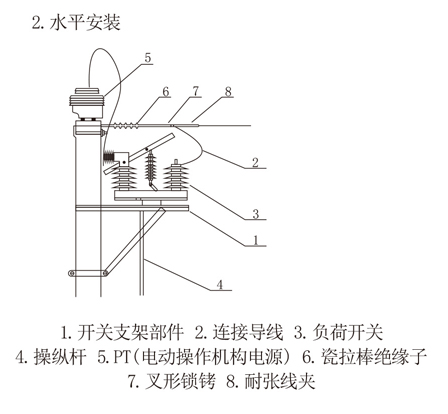

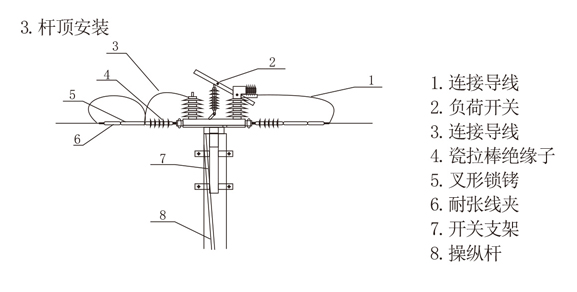

Installation mode and support diagram
Ordering instructions
When ordering, please indicate:
1. Product model, name, specification and quantity;
2. Name, specification and quantity of spare parts;
3. Operation mode: manual or electric
4. Installation method
