Summary
        LW38 (PGS) - 12 (24, 36) column SF6 load switch is suitable for the power distribution network with rated voltage of 12 (24, 36) kV, rated current of 400 / 630A, 50 / 60Hz to open and close the load current and overload current in the power system, which can automatically isolate the fault distribution line sections. The switch is equipped with the electronic controller of the latest technology, which can be operated manually, electrically and remotely. The electronic controller is installed in the stainless steel box, which can be used under various climatic conditions. In addition, wired and wireless modems are installed in the cabinet, which can realize remote monitoring and control. Simple column installation layout is convenient and fast, reducing construction cost.

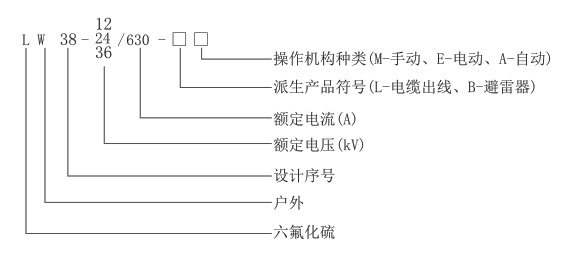

Model and its meaning

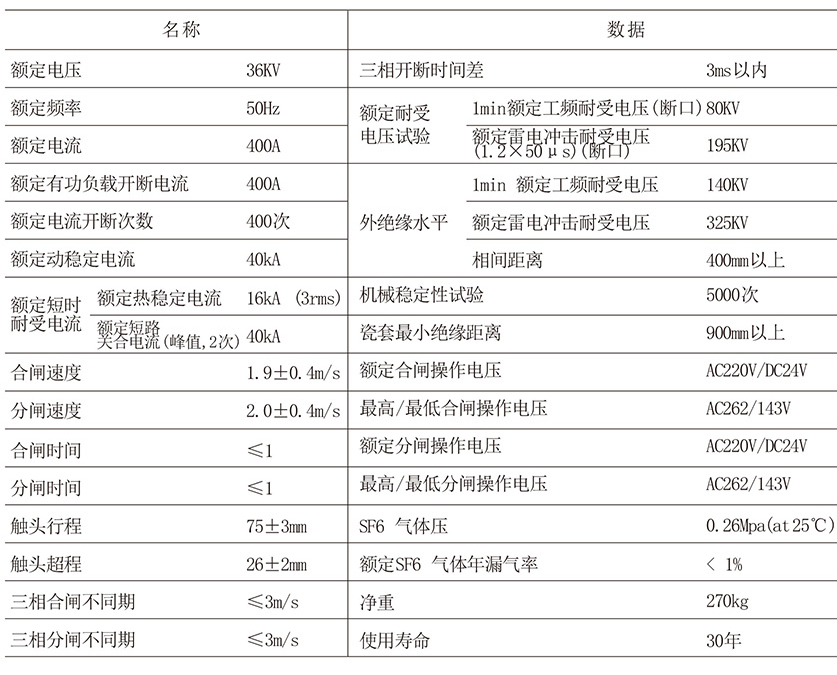

Main technical parameters

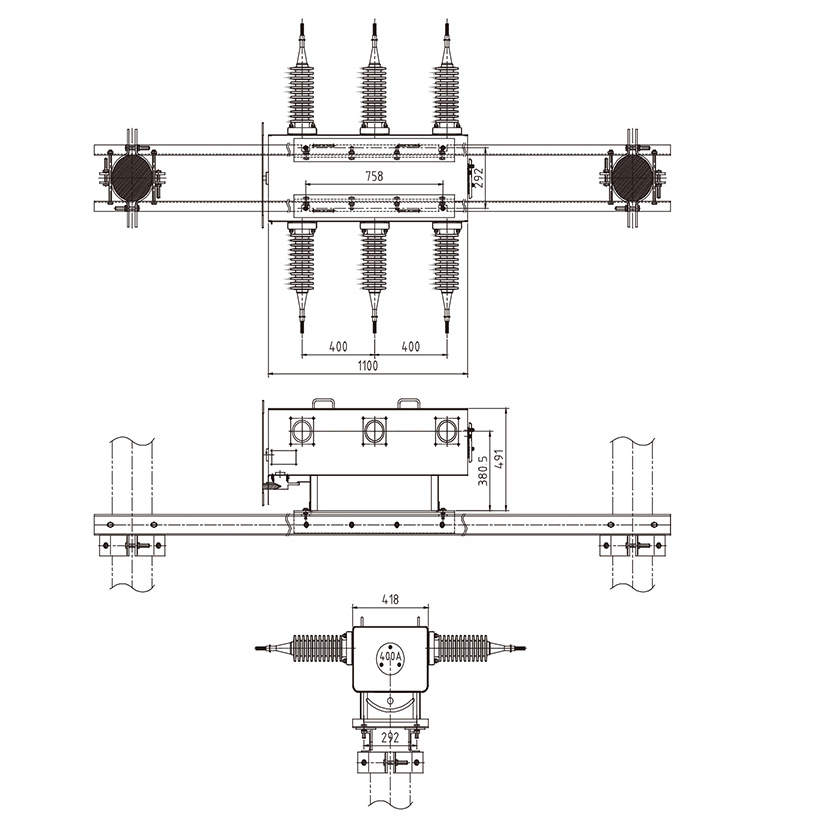

Outline and installation dimension
